ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• CHEVROLET 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first);
• DEFOGGER REAR-WINDOW ELECTRIC
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE;
• CUSTOM VALUE PACKAGE includes (PCP) Custom Convenience Package (G80) locking rear differential and (Z82) Trailering Package
• GVWR 7200 LBS. (3266 KG)
• CUSTOM CONVENIENCE PACKAGE includes (A91) remote locking tailgate and (AQQ) Remote Keyless Entry (B30) color keyed carpeting with rubberized vinyl floor mats (C49) rear-window defogger (UE1) OnStar and (U2K) SiriusXM Satellite Radio
• LICENSE PLATE KIT FRONT
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD)
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• REMOTE KEYLESS ENTRY WITH 2 TRANSMITTERS Includes (A91) remote locking tailgate.)
• BED LINER SPRAY-ON PICKUP BOX BED LINER with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• FLOOR COVERING COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS (Double Cab and Crew Cabs include second row floor mats)
• TIRES P275/55R20 ALL-TERRAIN BLACKWALL
• RALLY 1 EDITION includes (NZQ) 20 x 9 Black-painted aluminum wheels (CGN) spray-on bedliner Black graphics box-side decals and (P3H) front and rear Black Bow Tie
• SIRIUSXM SATELLITE RADIO (subscription required)
• DECAL DELETE PICKUP BOX
• REMOTE LOCKING TAILGATE
• PAINT SOLID
• TRAILERING PACKAGE includes trailer hitch 7-pin and 4-pin connectors Includes (G80) locking rear differential.
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• WHEELS 20 X 9 (50.8 CM X 22.9 CM) BLACK-PAINTED ALUMINUM
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER
• BLACK
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7 DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones (STD)
• CUSTOM PREFERRED EQUIPMENT GROUP includes standard equipment
• FRONT AND REAR BLACK BOW TIE
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front Performance
• Tires - Rear Performance
• Conventional Spare Tire
• Conventional Spare Tire
• Tow Hooks
• Daytime Running Lights
• HID headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 15000
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 710
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1065
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QT0
• Rear Tire Order Code: QT0
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.90
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary

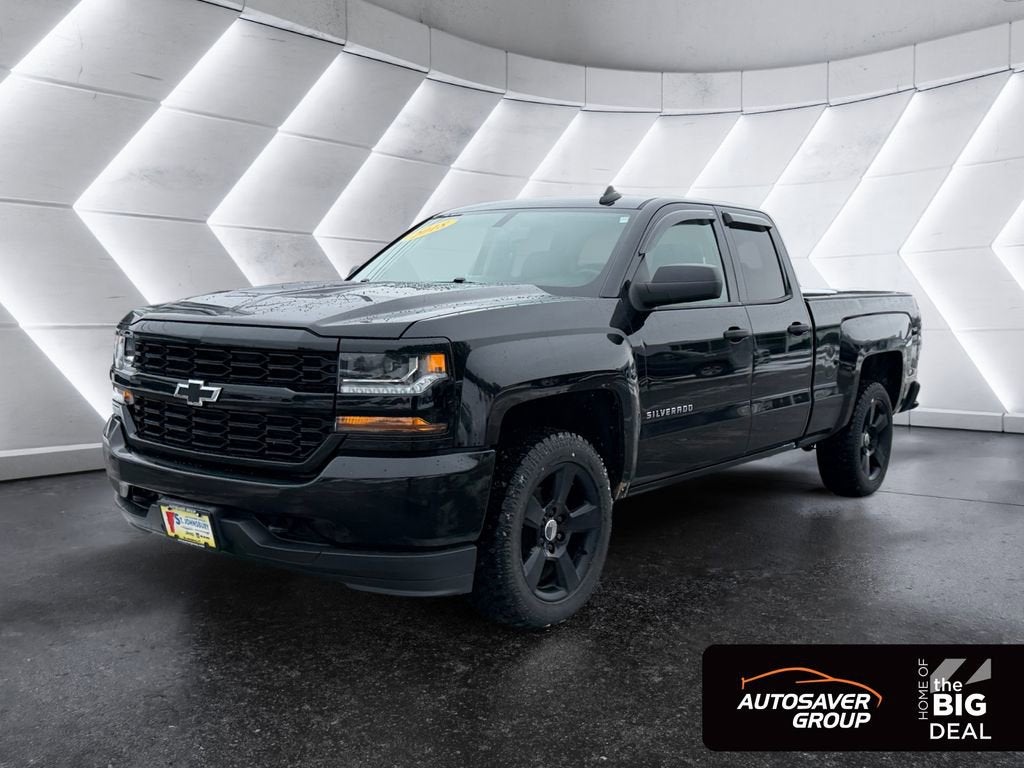

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
